Polarization Maintaining Planar Lightwave Circuit (PLC) Splitter is an optical splitter in which the polarization of linearly polarized light waves launched into the fiber is maintained during propagation, with little or no cross?coupling of optical power between the polarization modes.
Key Features：
Low Insertion loss
High Return Loss
High Extinction Ratio
Good channel-to-channel uniformity
Wide Operating Temperature:From -20℃ to 75℃
High Reliability and Stability
Applications：
FTTH, PON, CATV
EDFA & Raman Amplifier
Fiber Sensor
Fiber Optical Instrument
Power Monitoring System

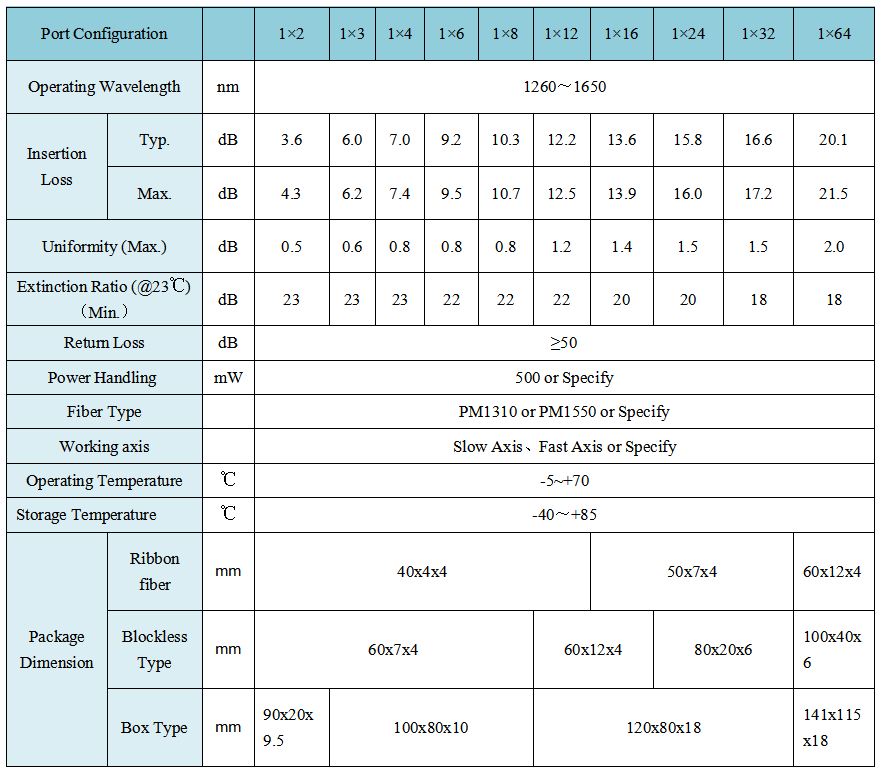

Specifications:
Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

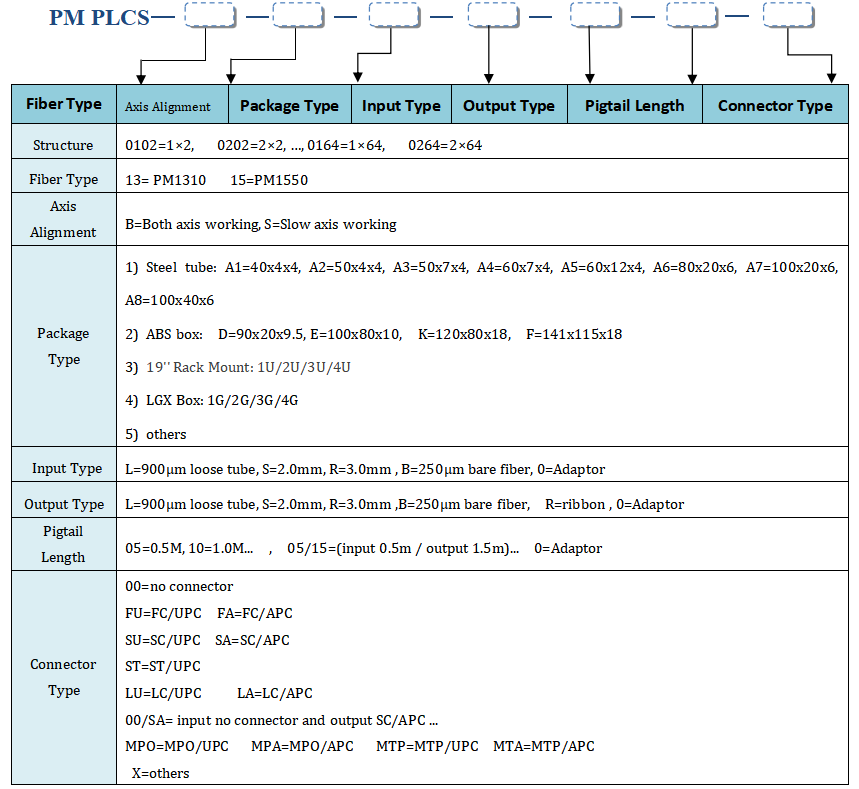

Ordering Information:
