Cloudfiber’s 1x2 Coarse Wavelength Division Multiplexer (CWDM) devices(3 Ports) produced by TFF(thin-film filter) technology have the properties of low insertion loss, low crosstalk,wide pass bandwidth and high isolation, which enable users to establish a low cost bi-directional optical communication system.
Key Features：
Low Insertion loss
Wide pass band
High channel
High stability and reliability
Epoxy free on optical path
Applications：
Line monitoring
WDM network
Telecommunication
Cellular application
Fiber optical amplifier
Access network

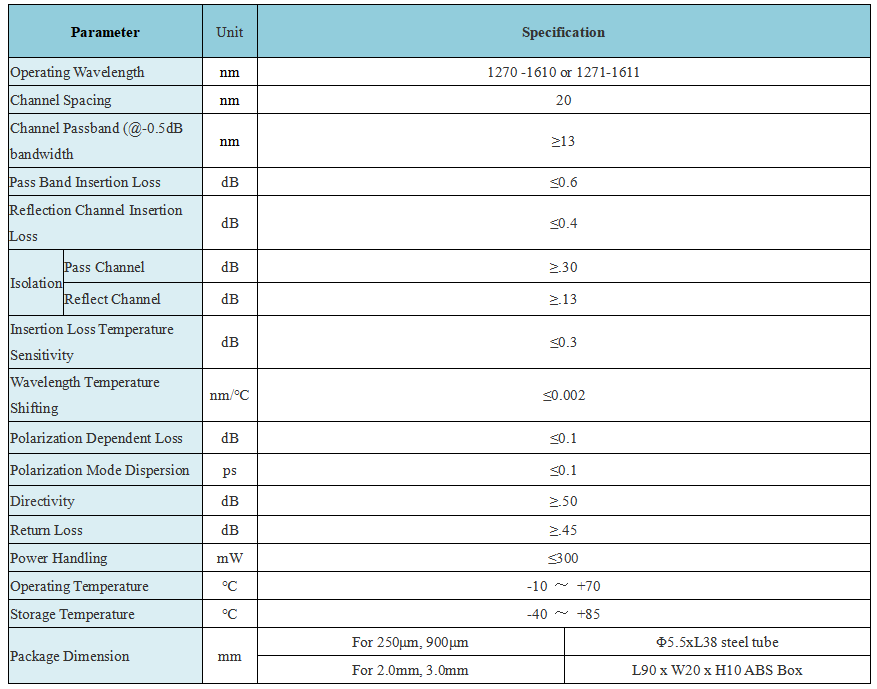

Specifications:
Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

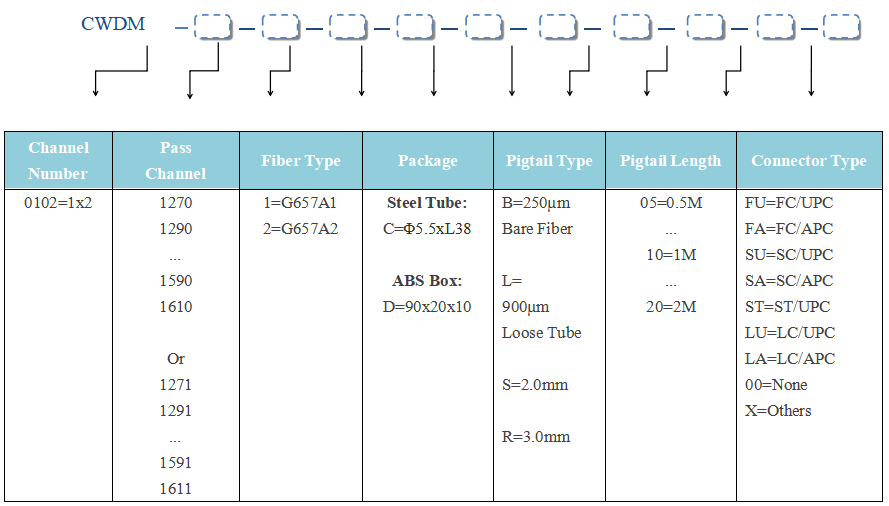

Order Information:

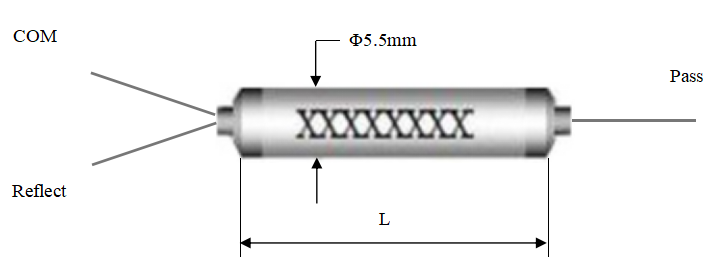

Package Dimension:
