Cloudfiber's Mode field diameter conversion FA（MFD-FA) provides a method of low loss coupling to a waveguide with a small mode field. A small section of ultra-high numerical aperture single-mode fiber (UHNA) is spliced to the tail fiber of standard SM or PM fiber to realize mode field conversion. The product is an ideal solution for connection on high-speed silicon photonic transceiver module. It adopts special assembly and polishing process and high-precision V-groove substrate to realize low insertion loss. It is made of all quartz and resistant to wide temperature.
Customized mode field diameter, such as 3.2μm/3.3μm/4μm/5.5μm to 9μm.
Key Features：
Mold field customization
High precision core pitch, core pitch can be customized
The length of the fiber protrusion can be customized
High temperature and reliability
Applications：
Integrated photon transceiver module

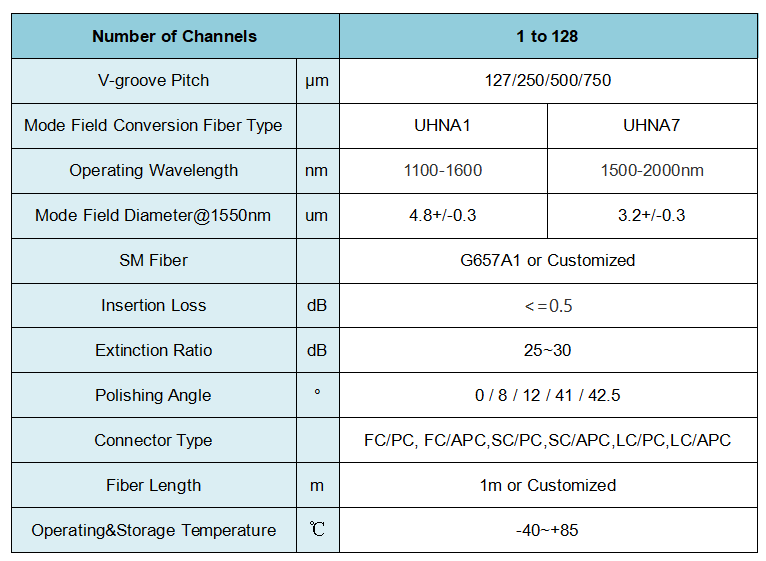

Specifications:
