Cloudfiber’s Fused Coupler utilizes our unique materials and manufacturing process with accurate control of fiber position, fusion and packaging processes to provide low insertion loss, low WDL and low PDL. They are available in a wide variety of configurations, including different split ratios, wavelength ranges, housing and connector types. Therefore, they can readily be specified for a wide variety of applications.The Multi- mode Optical Couplers are Based on FBT Technology, Have Excellent Performance.
Key Features：
Low Insertion loss
Low PDL
Various Coupling Ratio
Compact Design
High Reliability
Applications：
Network Monitoring
EDFA
Optical Testing system
Optical Fiber Sensors
High Temperature Fiber Optic Systems

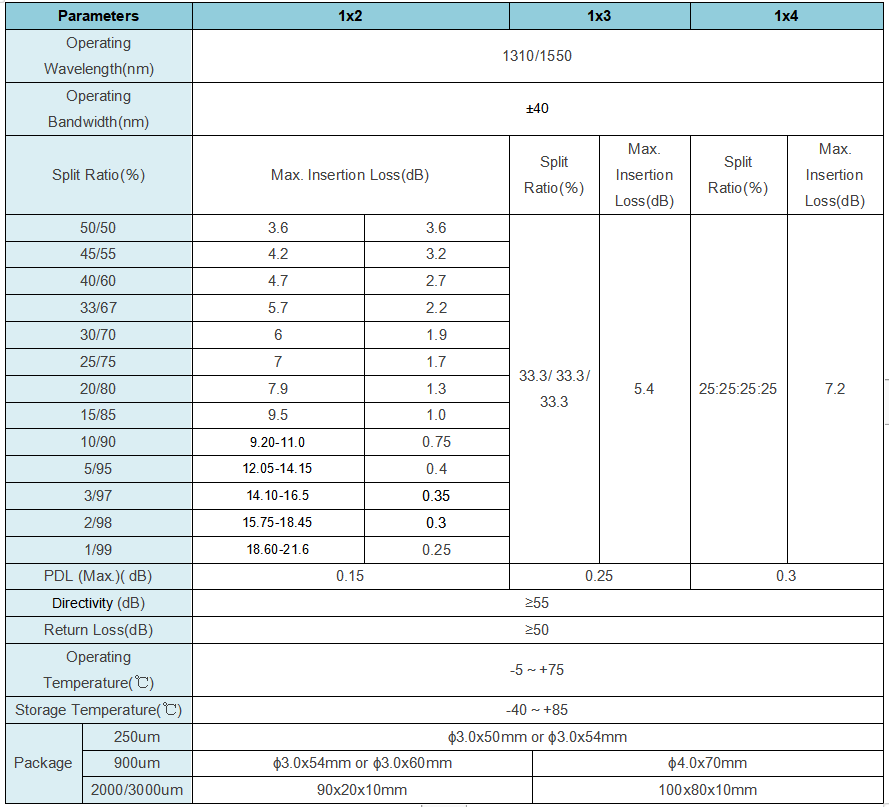

Specifications:
Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

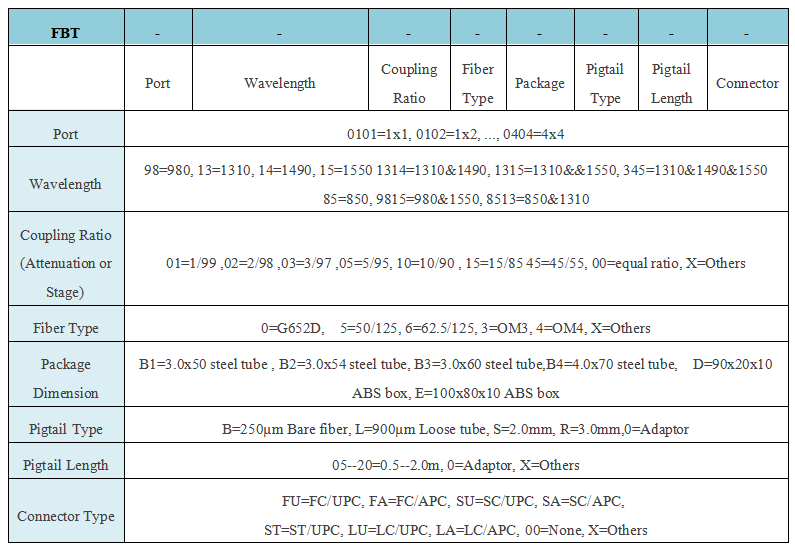

Ordering Information:
