The Athermal AWG(Arrayed waveguide Grating)module is a kind of passive module based on PLC(Planar Waveguide)technology, which does not need additional power supply or temperature control; Compared with traditional TFF(thin film filter)products, AAWG has the advantages of high integration,good uniformity,low PMD and low insertion loss.AAWG can provide a variety of channels, packaging methods and extended ports for customers to choose; Due to the multi-channel characteristics of DWDM AAWG, it is widely used in long-distance signal transmission such as MAN, backbone network and data center.
Key Features：
Low Insertion Loss
Wide Pass Band
High Channel Isolation
MUX and DEMUX Configuration
Flattop or Gaussian Profile
High Stability and Reliability
Applications：
DWDM Network
Telecommunication
Access Network
Specifications:
Note: All the data above does not include connectors.

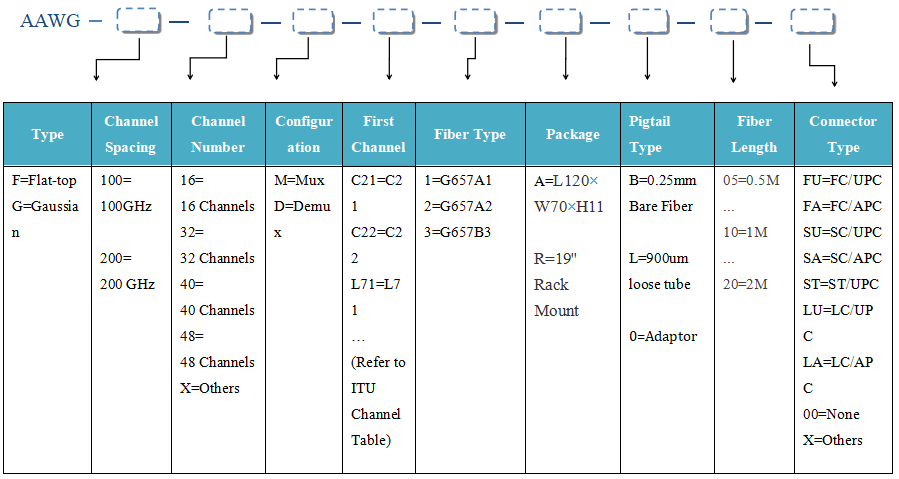

Order Information:

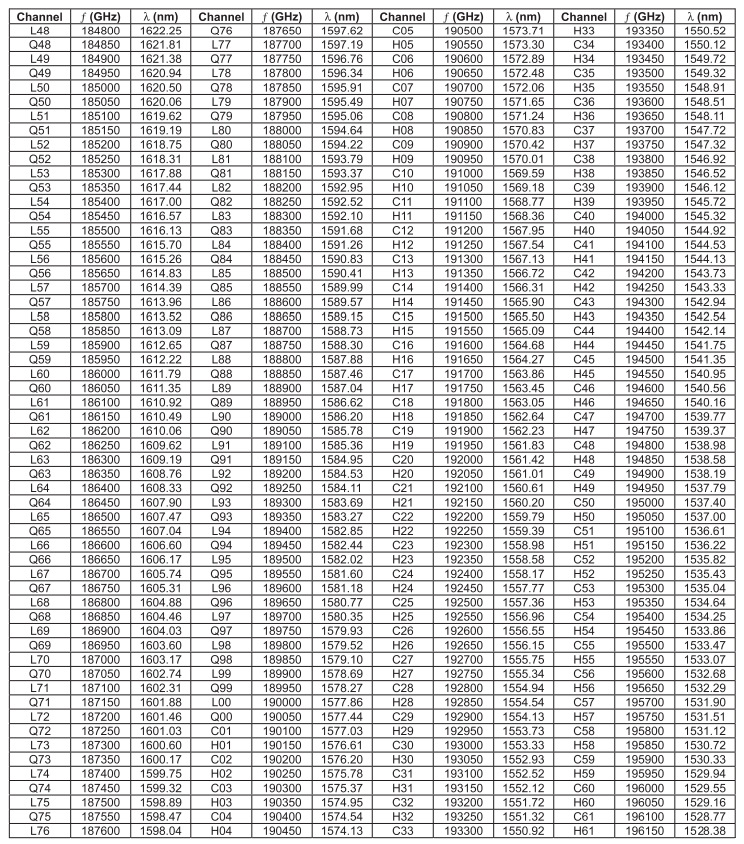

ITU Table:
