The 1x2 980/1550nm WDM and isolator hybrid device (1x2 IWDM) can be used in EDFA with high isolation requirements, which can not only ensure the optical isolation to meet the requirements, but also reduce the size of the entire EDFA module. The isolator plays the role of reverse isolation here to further ensure that the isolation of the WDM device meets the requirements of EDFA.
Key Features：
Wide Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
Ultra Low PDL & PMD
High Stability and Reliability
Epoxy Free Optical Path
Applications：
Optical Fiber Amplifier
CATV Fiberoptic Links
Fiberoptic Instruments
Transmitters and Fiber Lasers
Laboratory R&D

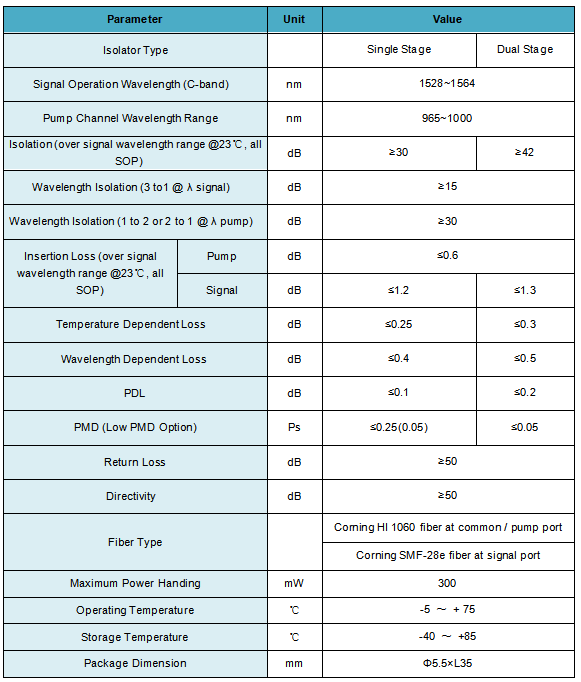

Specifications:
Note: All the data above does not include connectors.

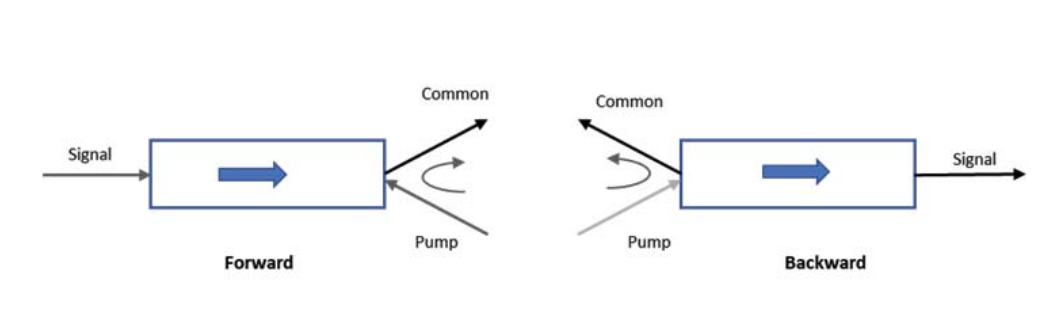

Port Configurations:

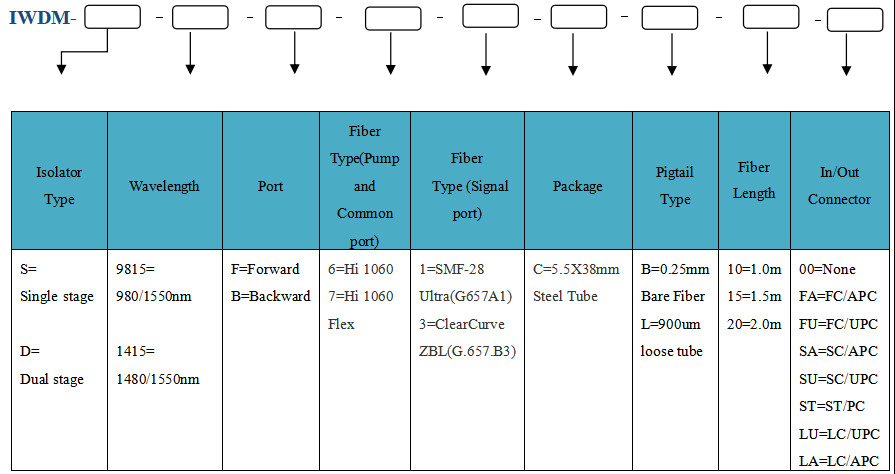

Ordering Information:
