Cloudfiber’100GHz, 200GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.
Key Features：
Low Insertion loss
Wide pass band
High channel
High stability and reliability
Epoxy free on optical path
Applications：
Channel Add/Drop
DWDM Network
Wavlength Routing
CATV fiberoptic System
Fiber optical amplifier

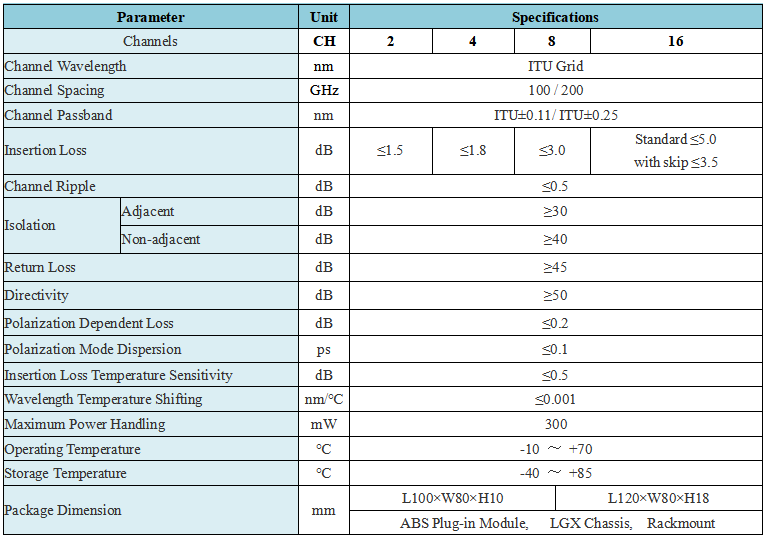

Specifications:
Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

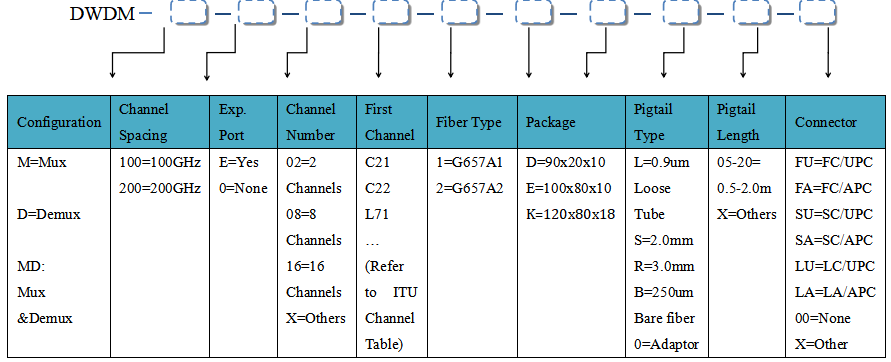

Order Information:
